Verbatim Digital Vinyl - Epson Direct Disc Template

Postby dpmaher » Wed Nov 18, 2015 11:09 am

I've been trying to print on Verbatim Digital Vinyl CD-Rs but I can't get the print to align properly. I realize I have to adjust the top and left margins in addition to the disc inner and outer diameter. The disc dimensions are 70mm and 23 mm. the default setting for my Epson printer are top: 8.5 mm, left: 16 mm, outer diam: 118 mm and inner diam: 23 mm. Using basic math, I come up with a top margin of 56.5 and a left margin of 64 mm. This doesn't work, the print isn't properly aligned. Can you please give me the correct dimensions?

thank you,
Dan
dpmaher

Posts: 1
Joined: Wed Nov 18, 2015

Re: Need Correct Dimensions for Verbatim Digital Vinyl

Postby Admin » Thu Nov 19, 2015 11:18 am

Hi Dan,

The Espon Tray Type 1 template has the following dimensions:
Left: 16mm
Top: 8.5mm
Outer Diameter: 118mm

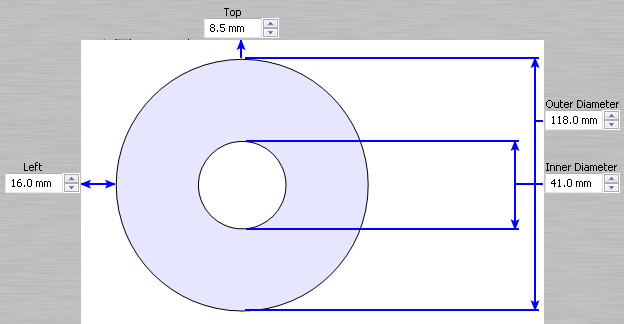

Epson Disc Template - Tray Type1

The Epson Tray Type 1 center point is:
Left Center: 118mm / 2 + 16mm = 75mm
Top Center: 118mm / 2 + 8.5mm = 67.5mm

The Verbatim Digital Vinyl dimensions should be:
Left: 75mm - (70mm / 2) = 40mm
Top: 67.5mm - (70mm / 2) = 32.5mm
Outer Diameter: 70mm
Inner Diameter: 23mm

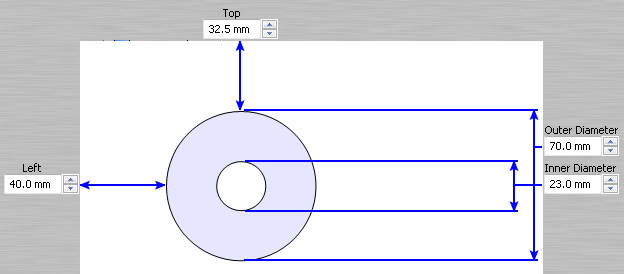

Verbatim Digital Vinyl Direct Disc Template

Part of the problem in getting the correct dimensions is that the Left and Top dimensions are based on the edge of the disc rather than the center point. In the next version of AudioLabel, the disc templates will be based on the center point, which will make it a lot easier to adjust the print alignment.

Please let us know if this works out for you.
